Arr Kay | Brakes and Clutches

R04 1.5 – 2.5 Nm

R04

Arrkay R04 Electromagnetic Pinion Brake

Voltage 24, 96, 105
Torque 1.5Nm, 2Nm, 2.5Nm
Pinion Bore 18 Hex, 18 Square
Mounting PCD 54 mm

Applications

Brake motors Machine tool Textile machines

R06 4 – 6 Nm

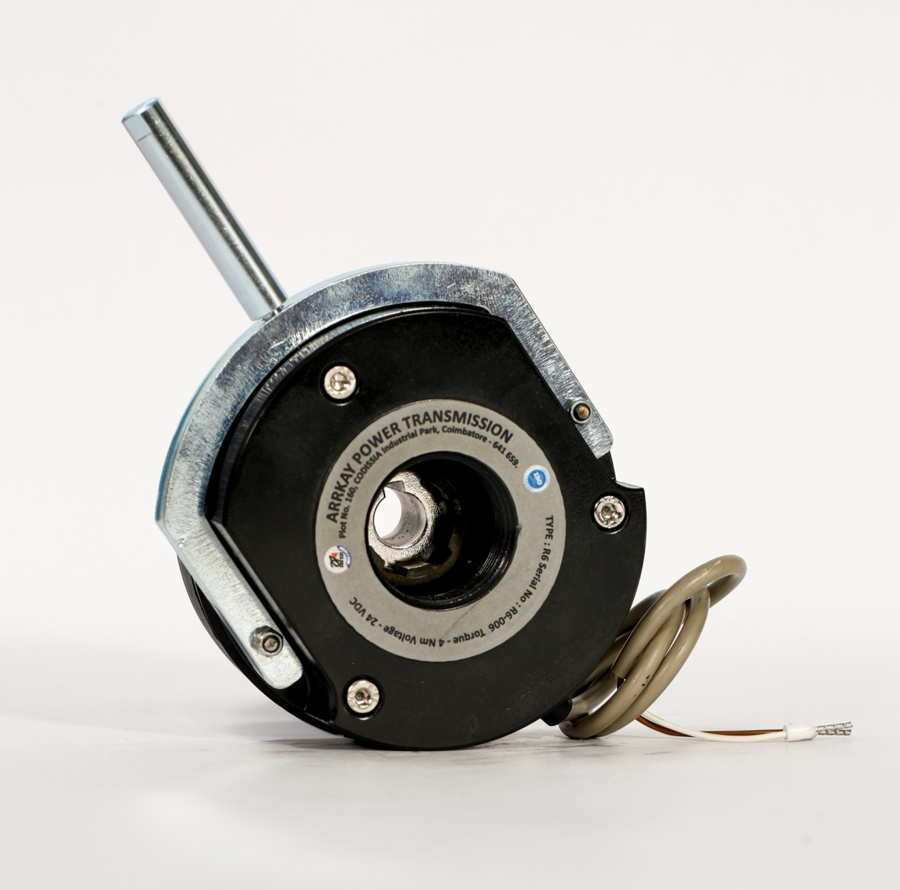

Arrkay R06 Electromagnetic Pinion Brake

Voltage 24, 96, 105, 190, 205 * other voltage on request
Torque 4Nm, 5Nm, 6Nm
Pinion Bore 11 – 15 mm
Mounting PCD 72 mm

Applications

Brake motors Wind mills Crane and Hoist Machine tool Textile machines Fork lifts Conveyors Elevators

R08 8 – 11 Nm

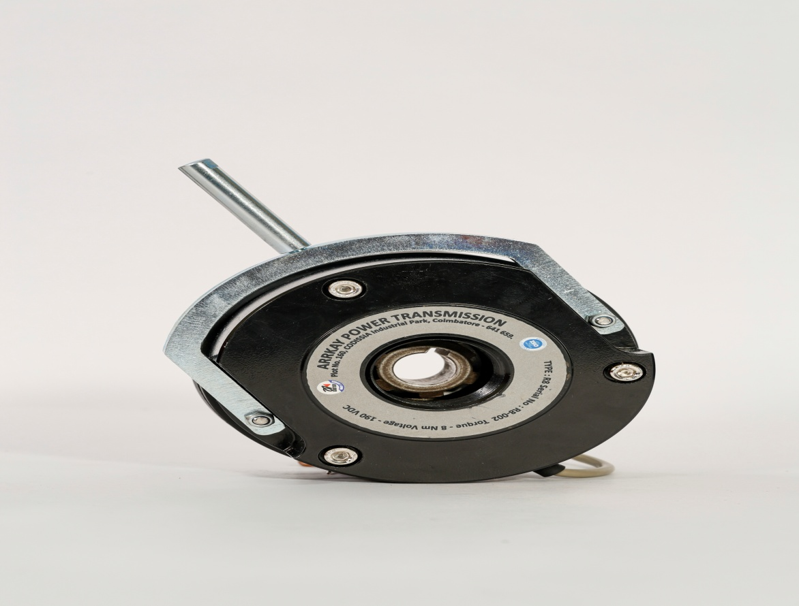

Arrkay R08 Electromagnetic Pinion Brake

Voltage 24, 96, 105, 190, 205 * other voltage on request
Torque 8Nm, 10Nm, 11Nm
Pinion Bore 14 – 19 mm
Mounting PCD 90 mm

Applications

Brake motors Wind mills Crane and Hoist Machine tool Textile machines Fork lifts Conveyors Elevators

R10 16 – 20 Nm

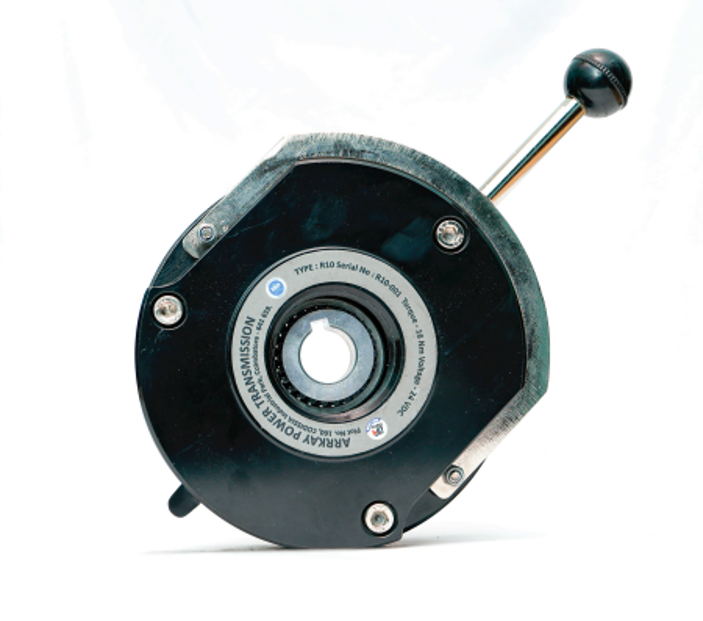

Arrkay R10 Electromagnetic Pinion Brake

Voltage 24, 96, 105, 190, 205 * other voltage on request
Torque 16Nm, 20Nm
Pinion Bore 15 – 20 mm
Mounting PCD 112 mm

Applications

Brake motors Wind mills Construction lift Crane and Hoist Machine tool Textile machines Fork lifts Conveyors Elevators

R12 26 – 40 Nm

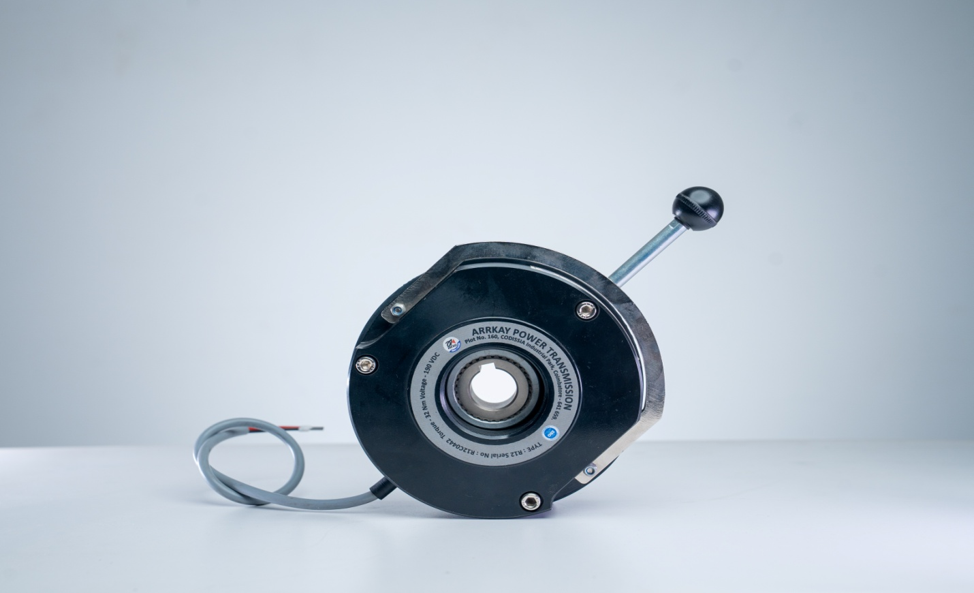

Arrkay R12 Electromagnetic Pinion Brake

Voltage 24, 96, 105, 190, 205 * other voltage on request
Torque 26Nm, 32Nm, 35Nm, 40Nm
Pinion Bore 19 – 25 mm
Mounting PCD 132 mm

Applications

Brake motors Wind mills Construction lift Crane and Hoist Machine tool Textile machines Fork lifts Conveyors Elevators

R14 55 – 65 Nm

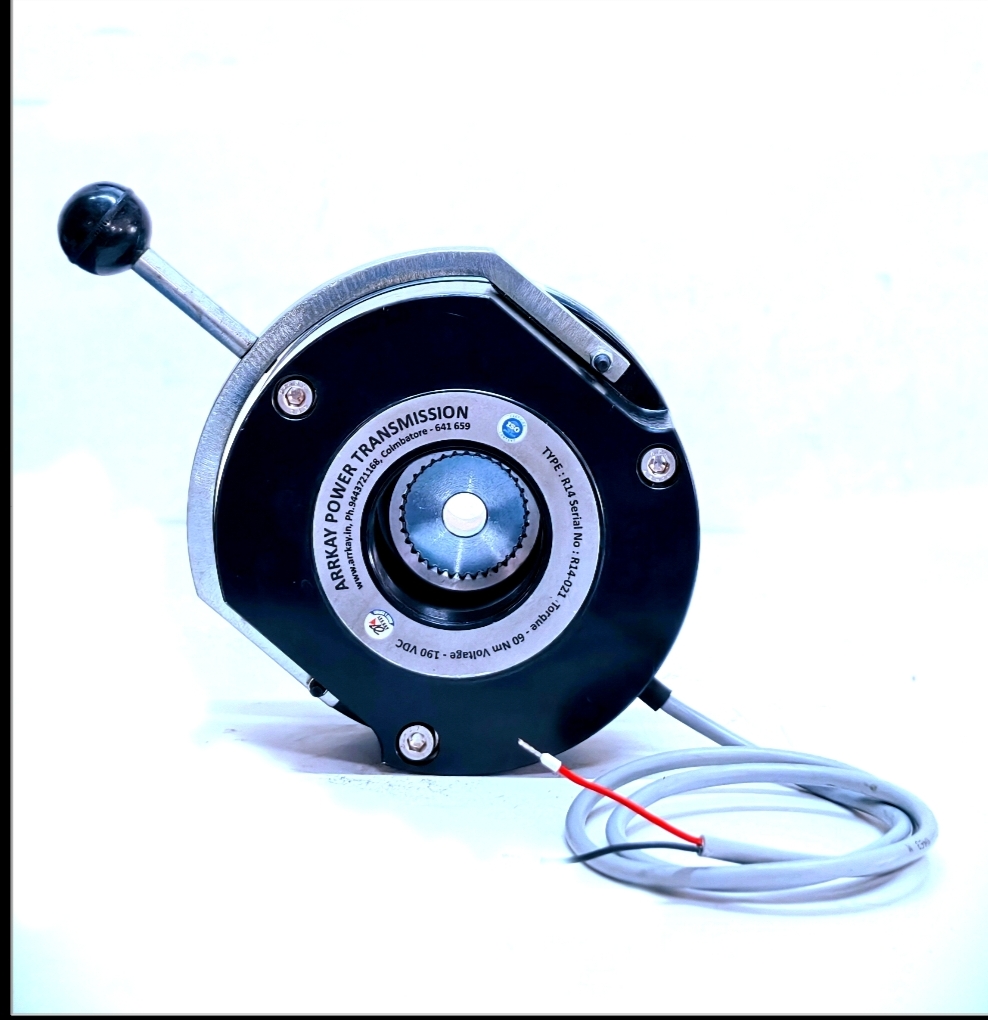

Arrkay R14 Electromagnetic Pinion Brake

Voltage 24, 96, 105, 190, 205 * other voltage on request
Torque 55Nm, 60Nm, 65Nm
Pinion Bore 24 – 30 mm
Mounting PCD 145 mm

Applications

Brake motors Wind mills Construction lift Crane and Hoist Machine tool Textile machines Fork lifts Conveyors Elevators

R16 80 – 120 Nm

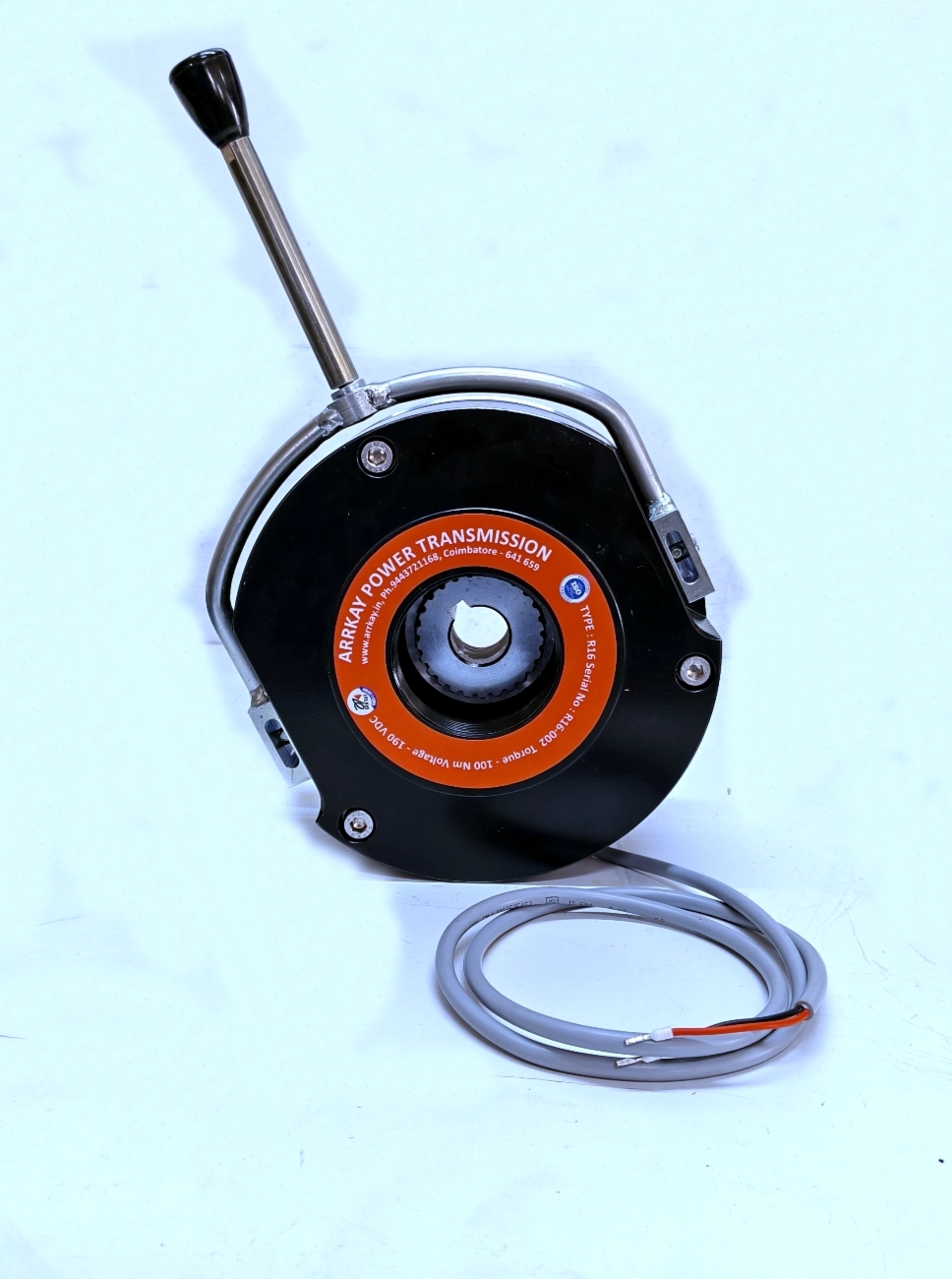

Arrkay R16 Electromagnetic Pinion Brake

Voltage 24, 96, 105, 190, 205 * other voltage on request
Torque 80Nm, 100Nm, 120Nm
Pinion Bore 30 – 35 mm
Mounting PCD 170 mm

Applications

Brake motors Wind mills Crane and Hoist Machine tool Textile machines Fork lifts Conveyors Elevators

R18 130 – 160 Nm

R18

Arrkay R18 Electromagnetic Pinion Brake

Voltage 24, 96, 105, 190, 205 * other voltage on request
Torque 130Nm, 150Nm, 160Nm
Pinion Bore 38 – 45 mm
Mounting PCD 196 mm

Applications

Brake motors Wind mills Crane and Hoist Machine tool Textile machines Fork lifts Conveyors Elevators

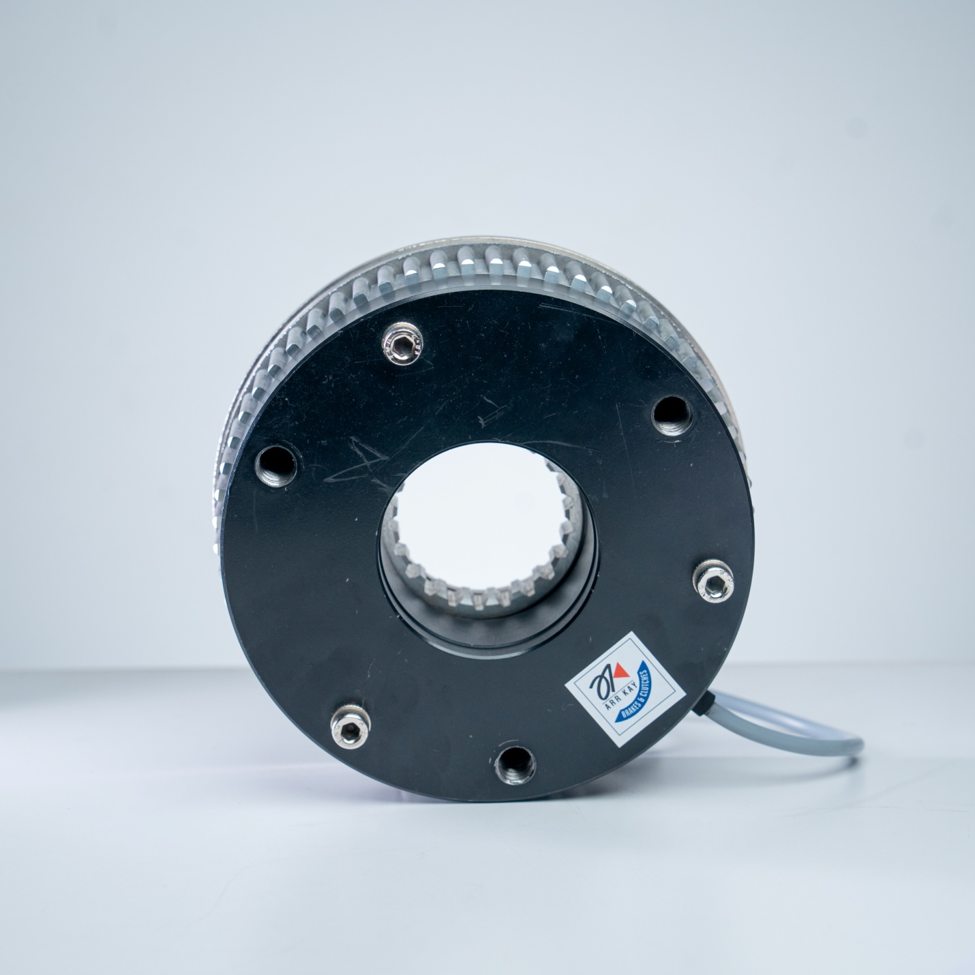

Blade Pitching Brake

Pitch Brake

Type WR01
Voltage 110 VDC
Torque 100 Nm
Mounting PCD 156 mm
Application Wind mills (1.8 MW Blade pitching Brake)

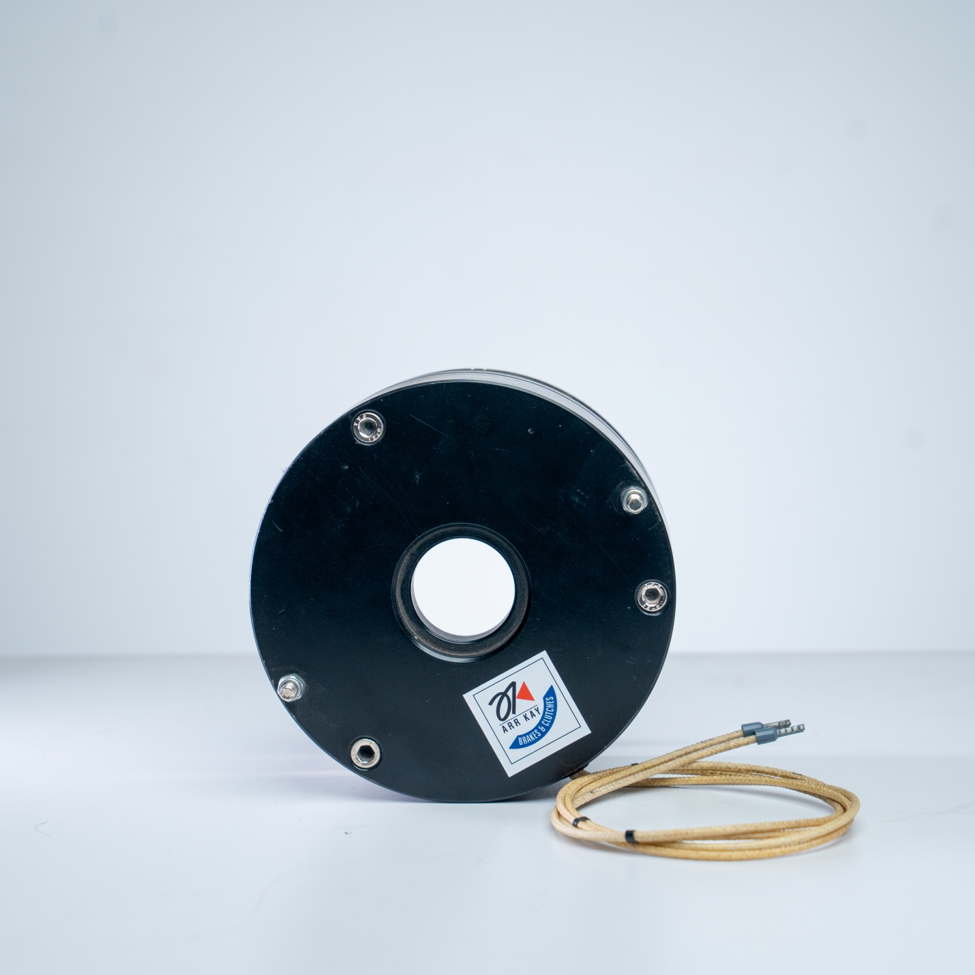

Yaw Motor Brake

Rossi Brake

Type WR02
Voltage 110 VDC
Torque 40 Nm
Mounting PCD 120 mm
Application Wind mills (1.8 MW Yaw motor Brake)

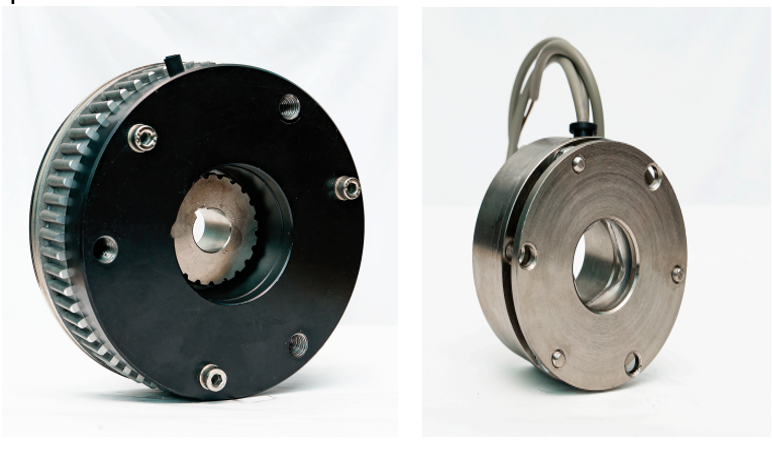

Built to Your Specification

Special Brakes on Customization

Custom brake assemblies engineered to your exact torque, voltage, bore, and PCD requirements – ideal when off-the-shelf options do not fit the application.

R-Series Pinion Brakes

Electromagnetic Brake Range

Arrkay R04 Electromagnetic Pinion Brake

Arrkay R06 Electromagnetic Pinion Brake

Arrkay R08 Electromagnetic Pinion Brake

Arrkay R10 Electromagnetic Pinion Brake

Arrkay R12 Electromagnetic Pinion Brake

Arrkay R14 Electromagnetic Pinion Brake

Arrkay R16 Electromagnetic Pinion Brake

Arrkay R18 Electromagnetic Pinion Brake

Pitch Brake

Rossi Brake

Special Brakes on Customization

*For all products, customization based on your requirement (size and dimension) can be made
